| Brand Name : | Lenovo |

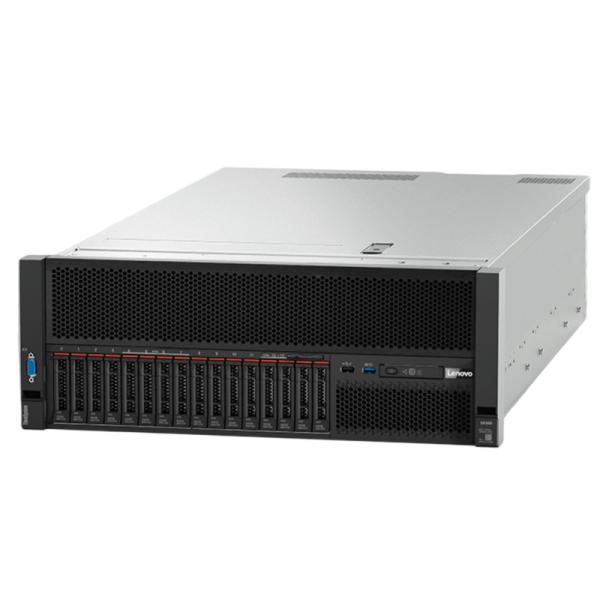

| Model Number : | SR860 V2 |
| Price : | $5,200.00 - $8,200.00/pieces |
| Payment Terms : | T/T |
| Supply Ability : | 100 Carton/Cartons per Month |
| Delivery Time : | 1-2months |
Machine types | 7Z60 - 3-year warranty |
Processor | Two or four third-generation Intel Xeon Scalable processors, either
Gold or Platinum level processors, with H or HL suffixes (formerly codename "Cooper Lake" or CPX6). Supports processors up to 28 cores, core speeds up to 3.9 GHz, and TDP ratings up to 250W. Two processor sockets on the system board and two processors on the Processor and Memory Expansion Tray. Six Intel Ultra Path Interconnect (UPI) links at 10.4 GT/s each. Four processors are connected in a mesh topology. |
Memory | Up to 48 DIMM slots (12 DIMMs per processor). Each processor has 6
memory channels, with 2 DIMMs per channel. Lenovo TruDDR4 RDIMMs and 3DS RDIMMs are supported. 24 DIMM sockets on the system board, and an additional 24 DIMM sockets on the processor and memory expansion tray. DIMM slots are shared between standard system memory and persistent memory. DIMMs operate at up to 3200 MHz at 2 DPC. |
Drive Bays | Up to 48x 2.5-inch hot-swap drive bays: * Up to 48x SAS/SATA drive
bays * Up to 24x SAS/SATA + 24x NVMe drive bays * Up to 24x SAS/SATA + 24x AnyBay drive bays (support SAS or SATA or NVMe drives) Optional two 7mm hot-swap SSD drive bays at the rear of the server, either SATA or NVMe, for OS boot or storage |
Power Supply | Up to four hot-swap redundant AC power supplies (all 80 PLUS
Platinum or Titanium certification): 750 W, 1100 W and 1800 W AC options, supporting 220 V AC. 750 W and 1100 W options also support 110V input supply. In China only, all power supply options support 240 V DC. Power supplies can be configured as N+1 or N+N. |
| Produce name | SR860 |
| Machine types | 7X69 - 3 year warranty |
| Form factor | 4U rack. |
| Processor | Up to four second-generation Intel Xeon Processor Scalable Family
of processors, either Gold or Platinum level processors(formerly codename "Cascade Lake"). Supports processors up to 28 cores, core speeds up to 3.8 GHz, and TDP ratings up to 205W. Two processor sockets on the system board and two processors on the Processor and Memory Expansion Tray (standard on most models). Two Intel Ultra Path Interconnect (UPI) links at 10.4 GT/s each. Four processors are connected in a ring topology. |
| Memory | Up to 48 DIMM slots (12 DIMMs per processor). Each processor has 6
memory channels, with 2 DIMMs per channel. Lenovo TruDDR4 RDIMMs, LRDIMMs and 3DS RDIMMs are supported. There are 24 DIMM sockets on the system board, and an additional 24 DIMM sockets on the processor and memory expansion tray (standard on most models). DIMM slots are shared between standard system memory and persistent memory. DIMMs are available in three speeds: 2666 MHz, 2933 MHz and Performance+ 2933 MHz. Performance+ DIMMs support 2993 MHz with two DIMMs installed per channel (2DPC), whereas 2933 MHz DIMMs support 2933 MHz with only 1 DIMM per channel (1DPC). |
| Chipset | Intel C624 "Lewisburg" chipset |
| Memory maximums | * With system memory DIMMs: Up to 6TB with 48x 128GB 3DS RDIMMs and
four processors (1.5TB per processor) * With Persistent Memory in memory mode: Up to 12TB of Persistent Memory with 24x 512GB Intel Optane DC Persistent Memory modules and eight processors (3TB per processor) * With Persistent Memory in AppDirect mode: Up to 15TB total memory (12TB of Persistent Memory using 24x 512GB DCPMMs + 3TB of system memory using 24x 128GB 3DS RDIMMs and four processors) (3.75TB per processor) Note: Support of more than 1TB per processor (more than 4TB for a 4-processor system) requires M-suffix or L-suffix processors with 2TB or 4.5TB memory support respectively. These calculations include any Persistent Memory installed. |
| Drive drives bays | Up to 16 2.5-inch hot-swap SAS/SATA bays. |
| Internal storage capacity | * 491.52TB using 16x 30.72TB 2.5-inch SAS/SATA SSDs * 61.44TB using 8x 7.68TB 2.5-inch NVMe SSDs * 38.4TB using 16x 2.4TB 2.5-inch HDDs |
| Storage controller | * No embedded RAID * 12 Gb SAS/SATA RAID adapters: * RAID 530i (cacheless) supports RAID 0, 1, 10, 5, 50 * RAID 730-8i with 1GB cache supports RAID 0, 1, 10, 5, 50 * RAID 730-8i with 2GB flash-backed cache supports RAID 0, 1, 10, 5, 50, 6, 60 * RAID 930-8i or 940-8i with 2GB flash-backed cache supports RAID 0, 1, 10, 5, 50, 6, 60 * RAID 930-16i or 940-16i with 4GB or 8GB flash-backed cache supports RAID 0, 1, 10, 5, 50, 6, 60 * 12 Gb SAS/SATA non-RAID: * 430-8i or 440-8i HBAs * 430-16i or 440-16i HBAs |
| Network Interface | Integrated 10Gb Ethernet controller, based on the Intel Ethernet
Connection X722. The server supports 1 of 6 available Phy adapters, providing either 2- or 4-port Gigabit Ethernet, 2- or 4-port 10 GbE with SFP+ connections or 2- or 4-port 10 GbE with RJ45 connections. One port can optionally be shared with the XClarity Controller (XCC) management processor for Wake-on-LAN and NC-SI support. |
| PCI Expansion slots | Up to 11 PCIe slots plus a slot reserved for a LOM Ethernet
adapter, plus a slot for the M.2 adapter. Four slots (slots 4, 10,
11& 12) are on the system board and three slots (slots 5-7) are through a lower riser card. Slots 1 & 2 and 14 & 15 are via upper riser cards that connect through slots 3 and 13 respectively. Slots 1-13 available with 2 processors; slots 14 & 15 require 4 processors. The slots are as follows: * Slot 1-2: Riser card slots (choice of x8/x8 or x16) (FHFL) * Slot 3: Riser slot to enable slots 1 & 2 in the PCIe Expansion Tray (PCIe 3.0 x16)* * Slot 4: PCIe 3.0 x8 (low profile) * Slot 5-7: Riser card slots (choices are x8/x8/x8, x8/x8/x8ML2 and x8/x16ML2) * Slot 8: PCIe 2.0 x2 / 6 Gb SATA slot reserved to M.2 adapter and drives * Slot 9: Reserved for Ethernet LOM phy adapter * Slot 10: PCIe 3.0 x8 (low profile) * Slot 11: PCIe 3.0 x8 (low profile) * Slot 12: PCIe 3.0 x8 (low profile) * Slot 13: Riser slot to enable slots 14 & 15 in the PCIe Expansion Tray (PCIe 3.0 x16)* * Slot 14-15: Riser card slots (choice of x8/x8 or x16) (FHFL) * Slots 3 and 13 are used as riser slots to enable slots 1, 2, 14 and 15 in the PCIe Expansion Tray. It is also supported to have the PCIe Expansion Tray installed with only one riser installed. For example, it is supported to have a riser card in slot 3 but not in slot 13; slot 13 can then be used as a PCIe x16 slot. |
| Ports | Front: One VGA video port. Two USB 2.0 ports or one USB 2.0 and one
USB 3.0 port, model dependent. The first USB 2.0 port can be configured to support local systems management by using the XClarity Administrator mobile app on a mobile device connected via a USB cable. Rear: Two USB 3.0 ports, one VGA video port, one DB-9 serial port, and one RJ-45 XClarity Controller (XCC) systems management port. The serial port can be shared with the XCC for serial redirection functions. Internal: Optional M.2 adapter in dedicated slot supporting one or two M.2 drives (for OS boot support, including hypervisor support). |
| Cooling | Six N+1 redundant non-hot-swap 60 mm fans (all six standard). One
additional fan connected to each of the two upper riser units. One additional fan integrated in each of the two power supplies. |
| Power supply | Up to two hot-swap redundant AC power supplies (all 80 PLUS
Platinum certification): 750 W, 1100 W, 1600 W and 2000 W AC options,supporting 220 V AC. 750 W and 1100 W options also support 110V input supply. In China only, all power supply options support 240V DC. Second power supply requires either Processor and Memory Expansion Tray or a power interposer card. |
| Video | G200 graphics with 16 MB memory with 2D hardware accelerator,
integrated into the XClarity Controller. Maximum resolution is 1920x1200 32bpp at 60Hz. |
| Dimensions | Width: 447 mm (17.6 in.), height: 176 mm (6.9 in.), depth: 766 mm (30.2 in.). |
| Weight | Maximum: 39.8 kg (87.7 lb) |
|
|
